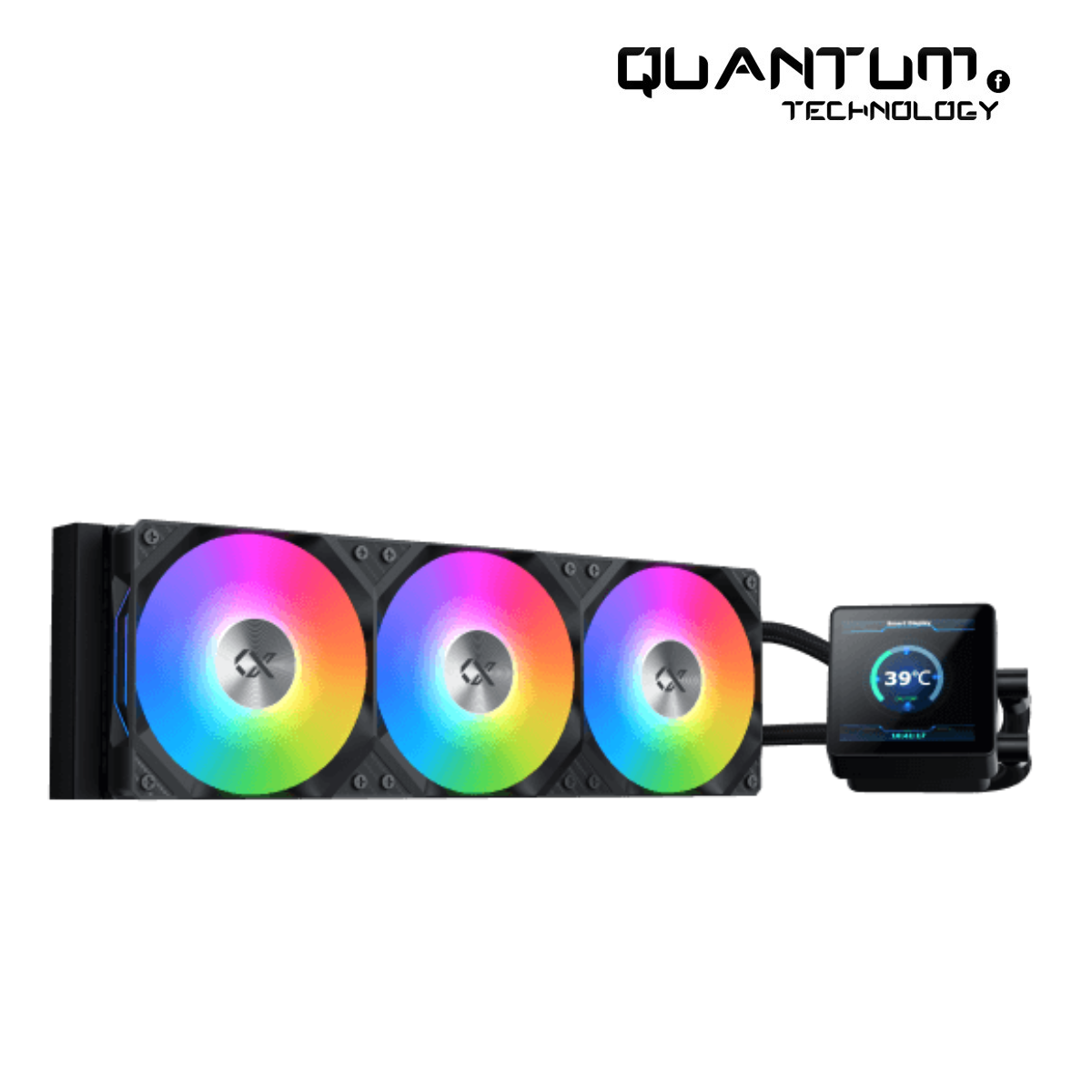

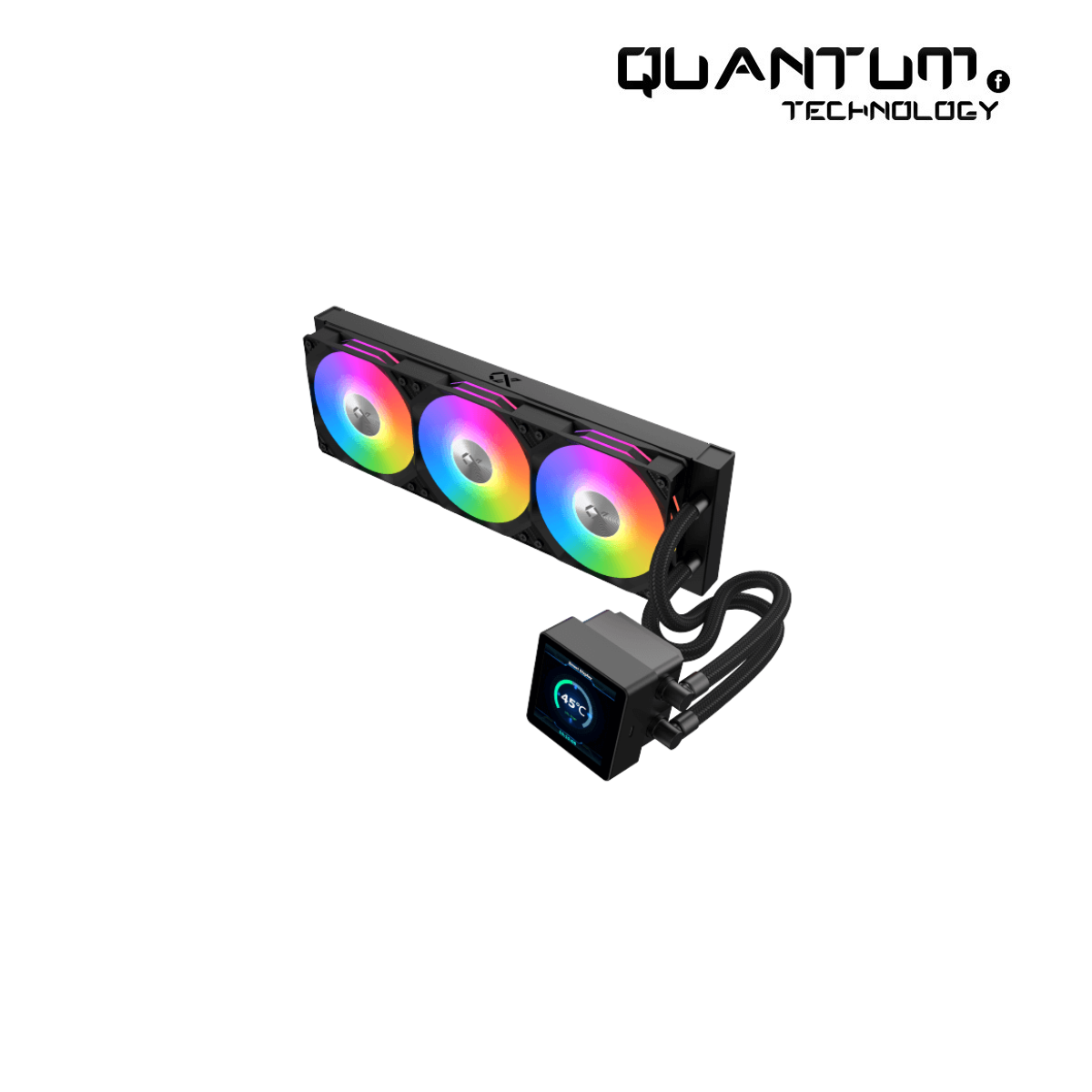

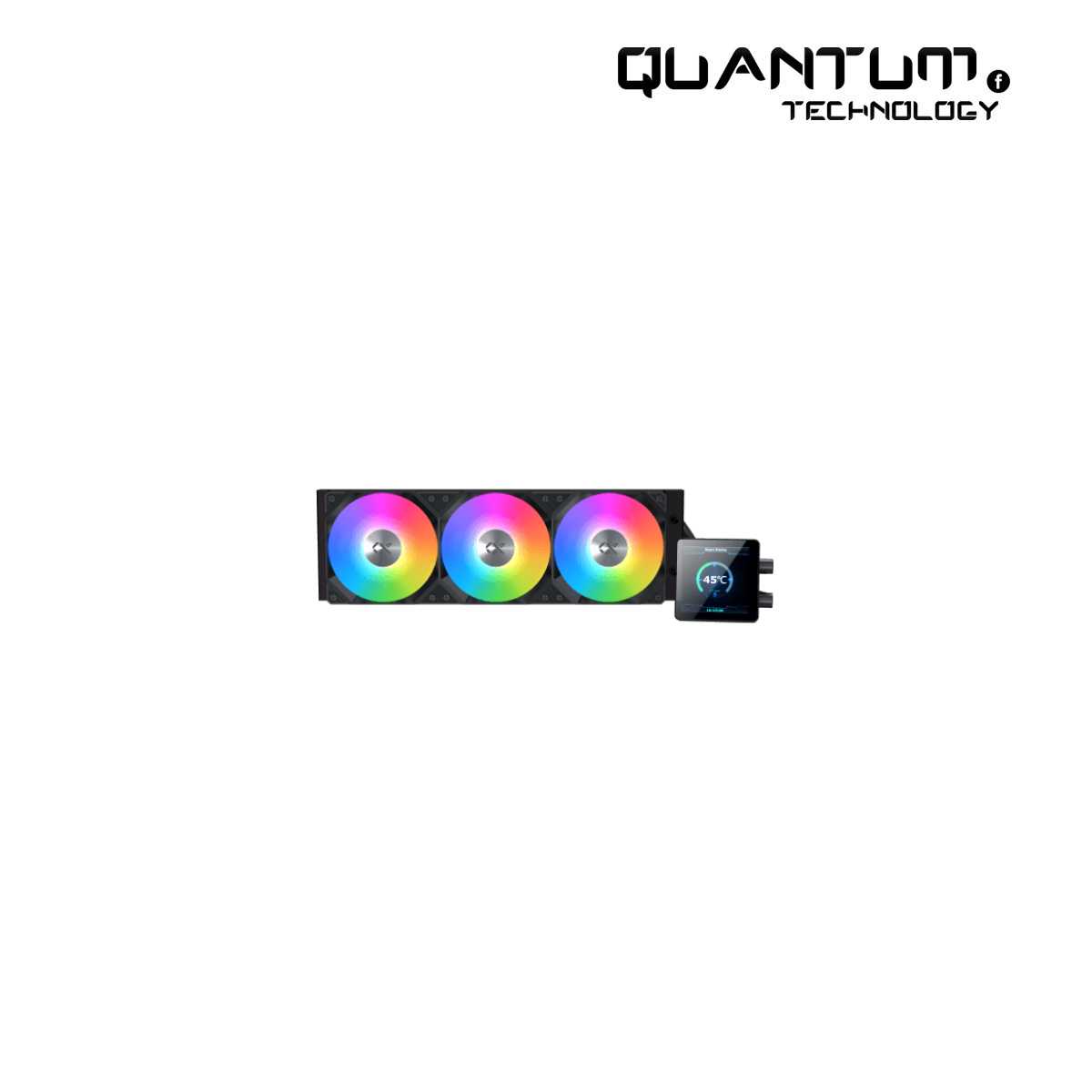

Xigmatek Connect 360 Liquid Cooler

Xigmatek Connect 360 Liquid Cooler – High-Performance Cooling with Advanced RGB Flair

The Xigmatek Connect 360 liquid cooler is engineered to deliver exceptional cooling performance for high-end CPUs. Designed for compatibility with Intel (LGA 1851/1700/1200/115X/20XX) and AMD (AM5/AM4) sockets, this cooler is ideal for demanding builds and overclocking setups.

Featuring a large aluminum radiator (397 x 120 x 27 mm) paired with 450mm white sleeved tubes, it efficiently dissipates heat even under extreme loads (up to 320W TDP). The pump unit measures 90 x 76 x 67 mm and uses a ceramic bearing to achieve 2700 ±10% RPM, while its 3.4” LCD pump head provides real-time performance monitoring. Operating at ≤27 dBA, the pump consumes ≤5.76W at 12VDC and 0.48A.

Cooling performance is further enhanced by three high-performance fans (360 x 120 x 28 mm each) featuring addressable RGB Rainbow lighting. With long-life hydro bearings, these fans operate between 800-2100 ±10% RPM, deliver 80 CFM airflow per fan, and produce ≤29 dBA noise at 12VDC (0.65A, ≤8W per fan), with an air pressure of 3.14 mm-H2O.

For more high-performance cooling solutions, visit Quantum Technology. Also, explore the official Xigmatek website for further details and product innovations.

Key Features:

• Broad CPU Compatibility:
  Supports Intel (LGA 1851/1700/1200/115X/20XX) and AMD (AM5/AM4) sockets.

• Efficient Radiator Design:
  Aluminum radiator (397 x 120 x 27 mm) with 450mm white sleeved tubes for optimal heat dissipation.

• High-Performance Pump:
  Ceramic bearing pump with a 3.4" LCD display, 2700 ±10% RPM, ≤27 dBA noise, and ≤5.76W power consumption.

• Triple RGB Fan Cooling:
  Three fans (360 x 120 x 28 mm) with addressable RGB Rainbow lighting, long-life hydro bearings, and adjustable speeds (800-2100 RPM) delivering 80 CFM airflow per fan.

• Optimized for High TDP:
  Supports cooling for systems with up to 320W TDP.

• Ultra-Quiet Operation:
  Both pump and fans operate quietly, maintaining a low noise profile (≤27 dBA pump, ≤29 dBA fans).

Specifications:

• CPU Support:

  • Intel: LGA 1851, 1700, 1200, 115X, 20XX
  • AMD: AM5, AM4

• Radiator Dimensions: 397 x 120 x 27 mm

• Radiator Material: Aluminum

• Tube Length: 450mm, White Sleeved Tube

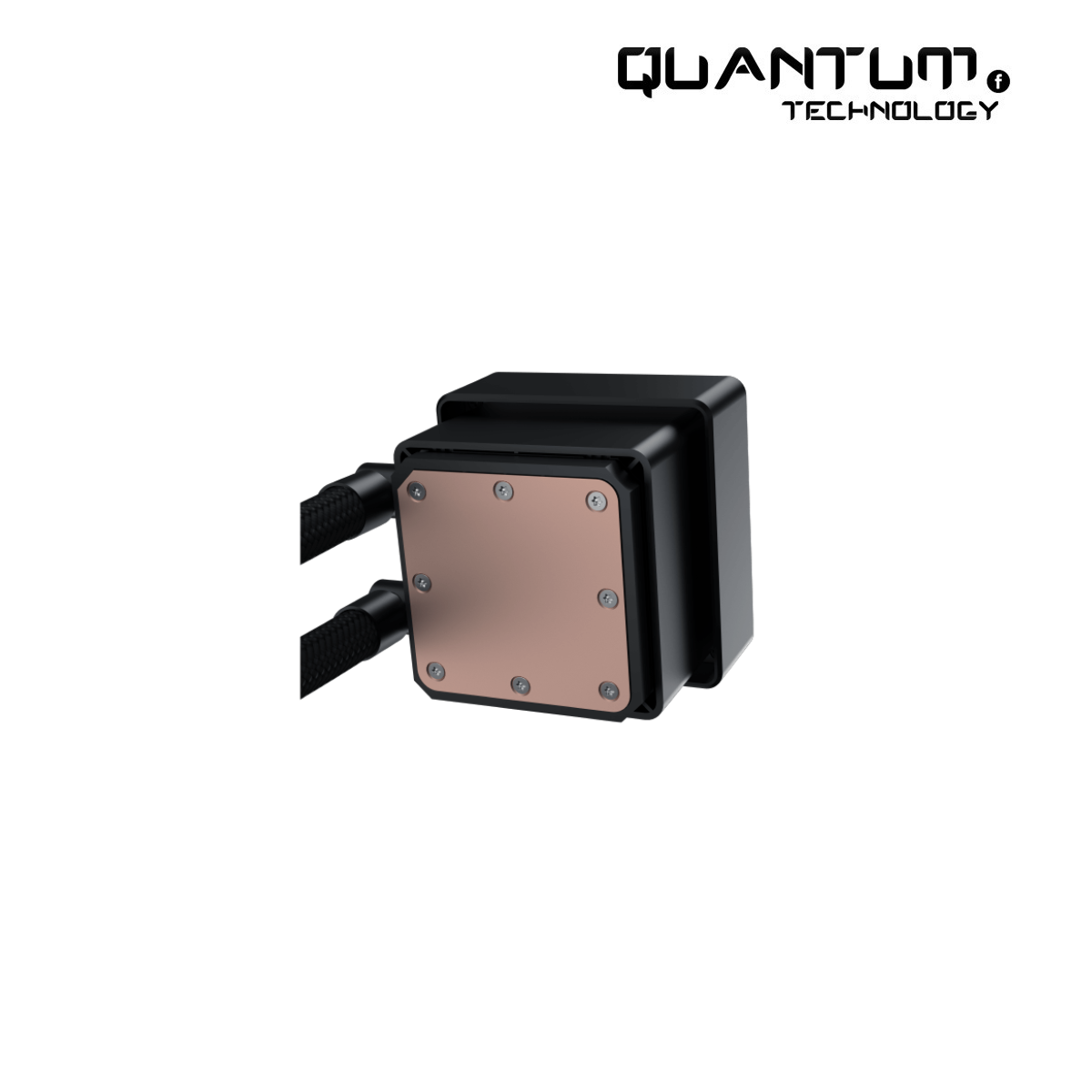

• Pump Dimensions: 90 x 76 x 67 mm

• Pump Bearing: Ceramic

• Pump RPM: 2700 ±10% RPM

• Pump Noise: ≤27 dBA

• Pump Rated Voltage: 12 VDC

• Pump Rated Current: 0.48A

• Pump Power Consumption: ≤5.76W

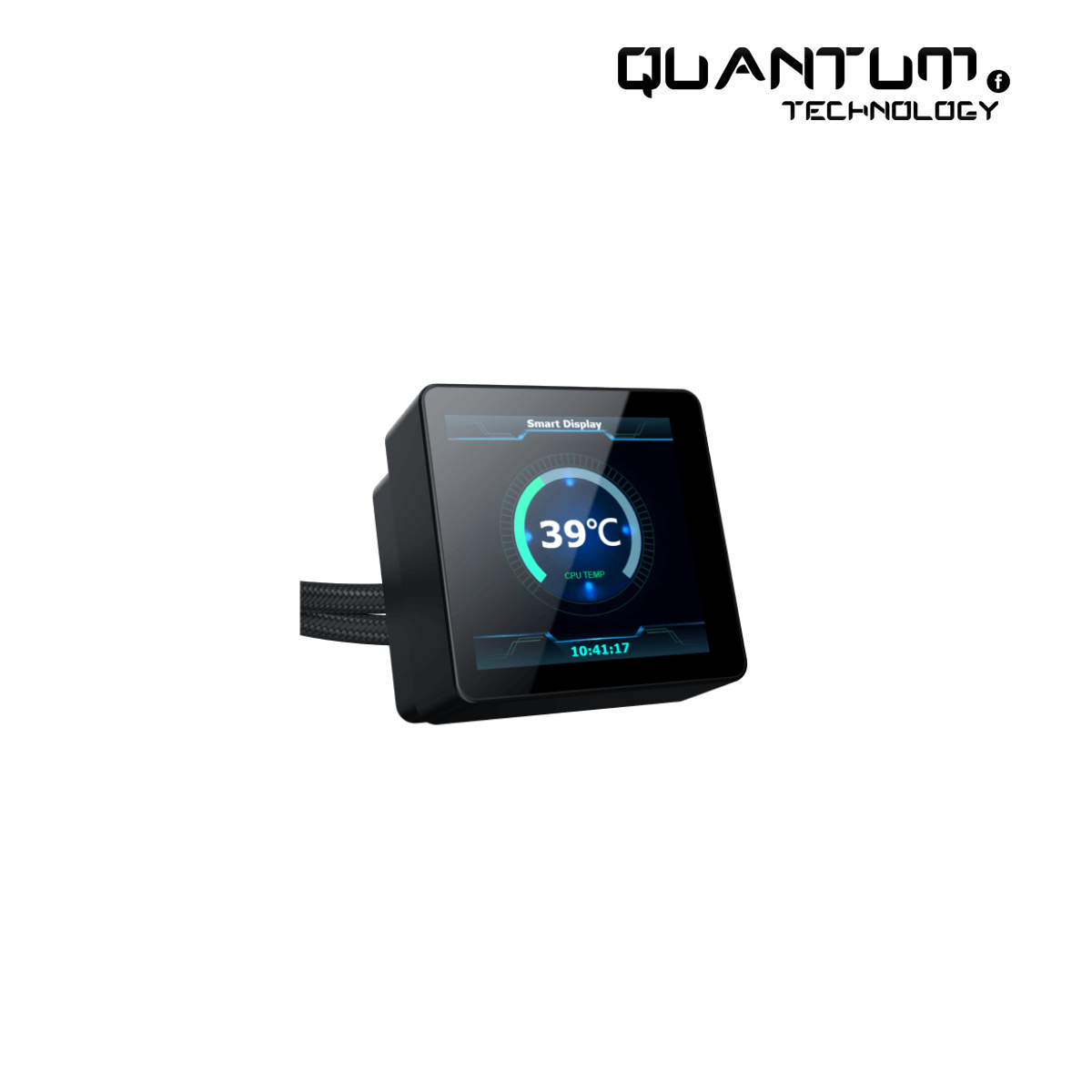

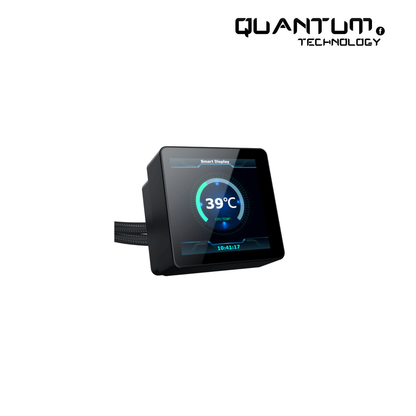

• Pump Display: 3.4” LCD Pump Head

• TDP Support: 320W

• Fan Dimensions (each): 360 x 120 x 28 mm

• Fan Appearance: Addressable RGB Rainbow Lighting

• Fan Bearing: Long Life Hydro Bearing

• Fan RPM: 800-2100 ±10% RPM

• Fan Rated Voltage: 12 VDC

• Fan Rated Current: 0.65A

• Fan Power Consumption: ≤8W

• Fan Airflow: 80 CFM per fan

• Fan Air Pressure: 3.14 mm-H2O

• Fan Noise: ≤29 dBA
