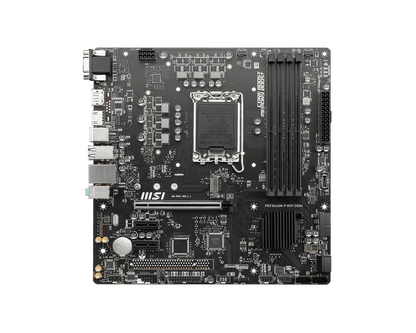

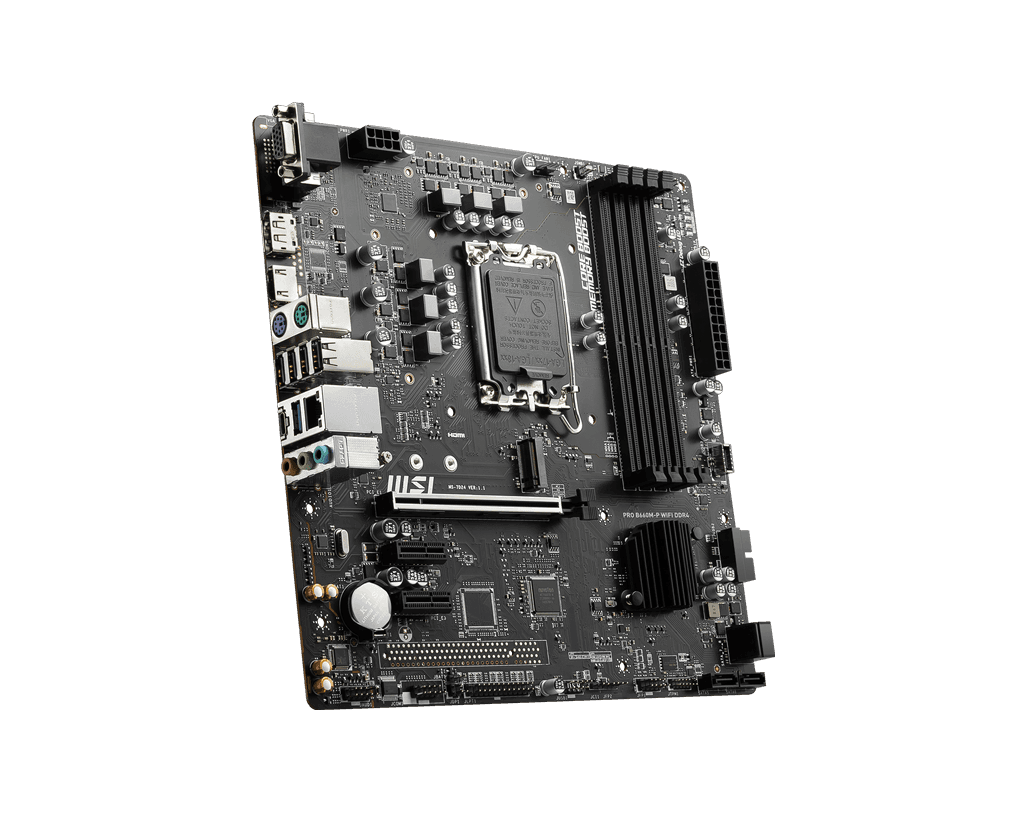

PRO B660M-P WIFI DDR4 MSI
PRO B660M-P WIFI DDR4 MSI
Regular price
LE 5,000.00 EGP
Regular price
Sale price
LE 5,000.00 EGP
Unit price
per
Shipping calculated at checkout.
Product Description
| Brand | MSI |
|---|
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel B660 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 1R 3200 / 2666 / 2133 (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ 1DPC 2R Max speed up to 4000+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 3600+ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. |
|---|---|
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 slot (Key M): M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| Wireless LAN | Intel 3165NGW Wi-Fi |
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1 x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1 x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x parallel port connector 1 x Serial port 1 x Clear CMOS jumper 4 x EZ Debug LED |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | None RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 |
Supported |
|---|
