MSI MPG X870E EDGE TI WIFI Motherboard – AMD X870E, DDR5, PCIe 5.0, WiFi 7

The MSI MPG X870E EDGE TI WIFI is a premium ATX gaming motherboard designed for enthusiasts and professionals who demand cutting-edge performance on the AMD AM5 platform. Featuring the powerful AMD X870E chipset, it supports the latest AMD Ryzen 9000 and 7000 Series processors, making it a future-proof foundation for high-end gaming and content creation.

Equipped with dual PCIe 5.0 x16 slots, the X870E EDGE TI WIFI delivers maximum bandwidth for next-generation GPUs. It also supports PCIe Gen5 NVMe SSDs, ensuring ultra-fast storage with lightning speeds for gaming and professional workloads.

The board features a 19+2+1 VRM power phase design with premium components, extended heatsinks, heat pipes, and Frozr AI thermal solutions, ensuring stability even under extreme overclocking. DDR5 memory support with speeds up to 8000+ MHz (OC) delivers unmatched performance for multitasking and gaming.

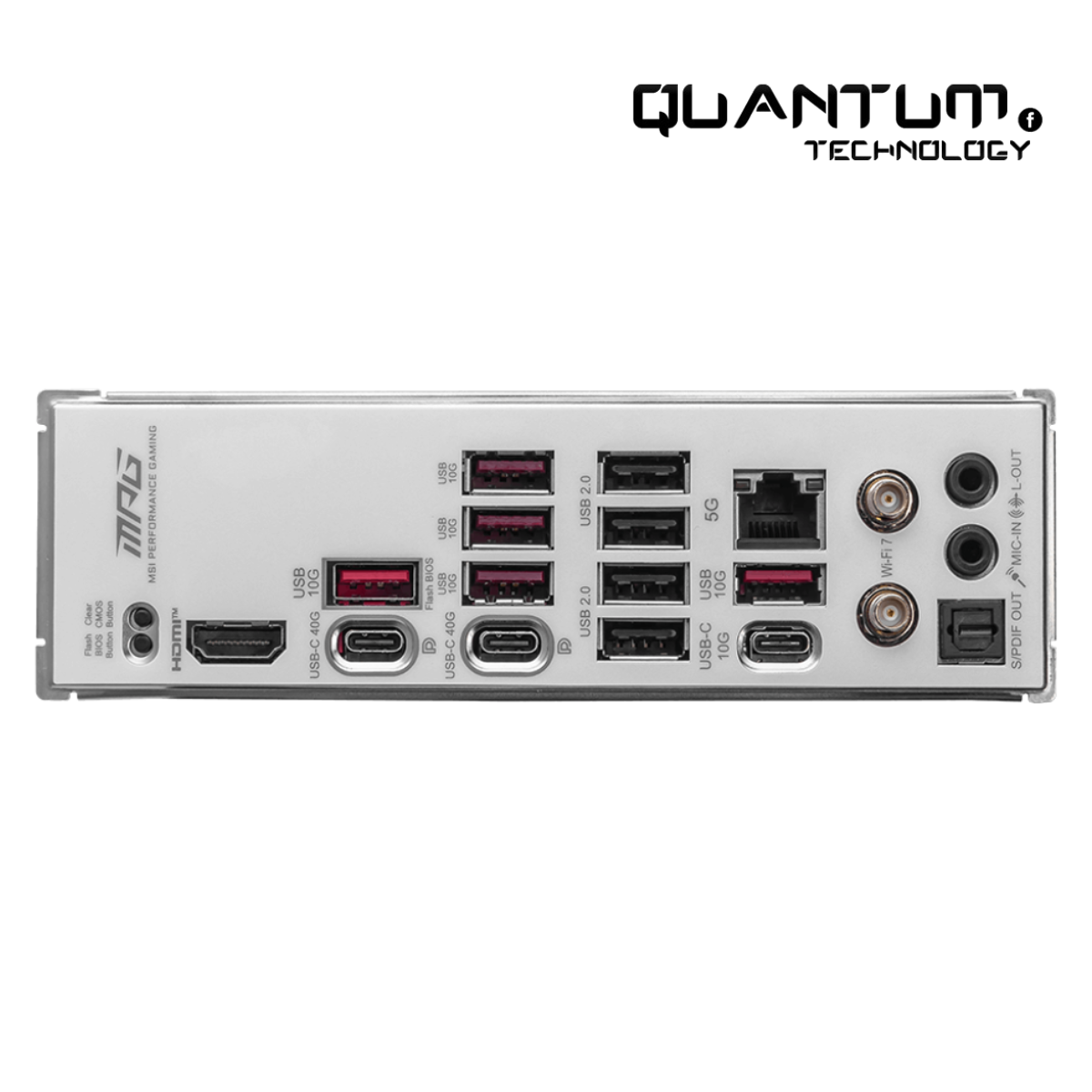

Networking is state-of-the-art with WiFi 7 and 10Gb + 2.5Gb dual Ethernet, providing ultra-low latency and fast connectivity for online gaming and data-intensive tasks. The I/O includes USB 4.0 Type-C, multiple USB 3.2 Gen2x2 ports, HDMI, and DisplayPort for extensive device compatibility.

MSI’s Mystic Light RGB, Audio Boost 5, and Click BIOS 5 give users customization, immersive sound, and easy system control. The MPG X870E EDGE TI WIFI is engineered for those who want uncompromising speed, durability, and next-gen readiness.

⭐ Key Features

• Supports AMD Ryzen 9000 & 7000 Series CPUs (AM5 socket)

• AMD X870E chipset for premium performance

• Dual PCIe 5.0 x16 slots for next-gen GPUs

• PCIe 5.0 M.2 NVMe slots with Shield Frozr cooling

• DDR5 memory support up to 8000+ MHz (OC)

• 19+2+1 VRM power phase design with premium cooling

• WiFi 7 + 10Gb & 2.5Gb dual LAN networking

• USB 4.0 Type-C, HDMI, DisplayPort connectivity

• Mystic Light RGB, Audio Boost 5, Click BIOS 5

• ATX form factor with reinforced durability

⚙️ Specifications

• Chipset: AMD X870E

• Socket: AM5 (AMD Ryzen 9000 / 7000 Series CPUs)

• Form Factor: ATX

• Memory: 4 × DDR5 DIMM slots, up to 256GB, 8000+ MHz (OC)

• Expansion: 2 × PCIe 5.0 x16, 1 × PCIe 4.0 x16 (x4), PCIe 3.0 slots

• Storage: 4 × M.2 (PCIe Gen5/Gen4), 6 × SATA 6Gb/s

• Networking: WiFi 7, Intel 10Gb LAN + 2.5Gb LAN, Bluetooth 5.4

• USB Ports: USB 4.0 Type-C, USB 3.2 Gen2x2, USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0

• Audio: Realtek ALC4082 7.1 HD Audio with Audio Boost 5

• Power Design: 19+2+1 VRM phases with extended heatsinks & heat pipes

• Warranty: 3 Years Limited.
