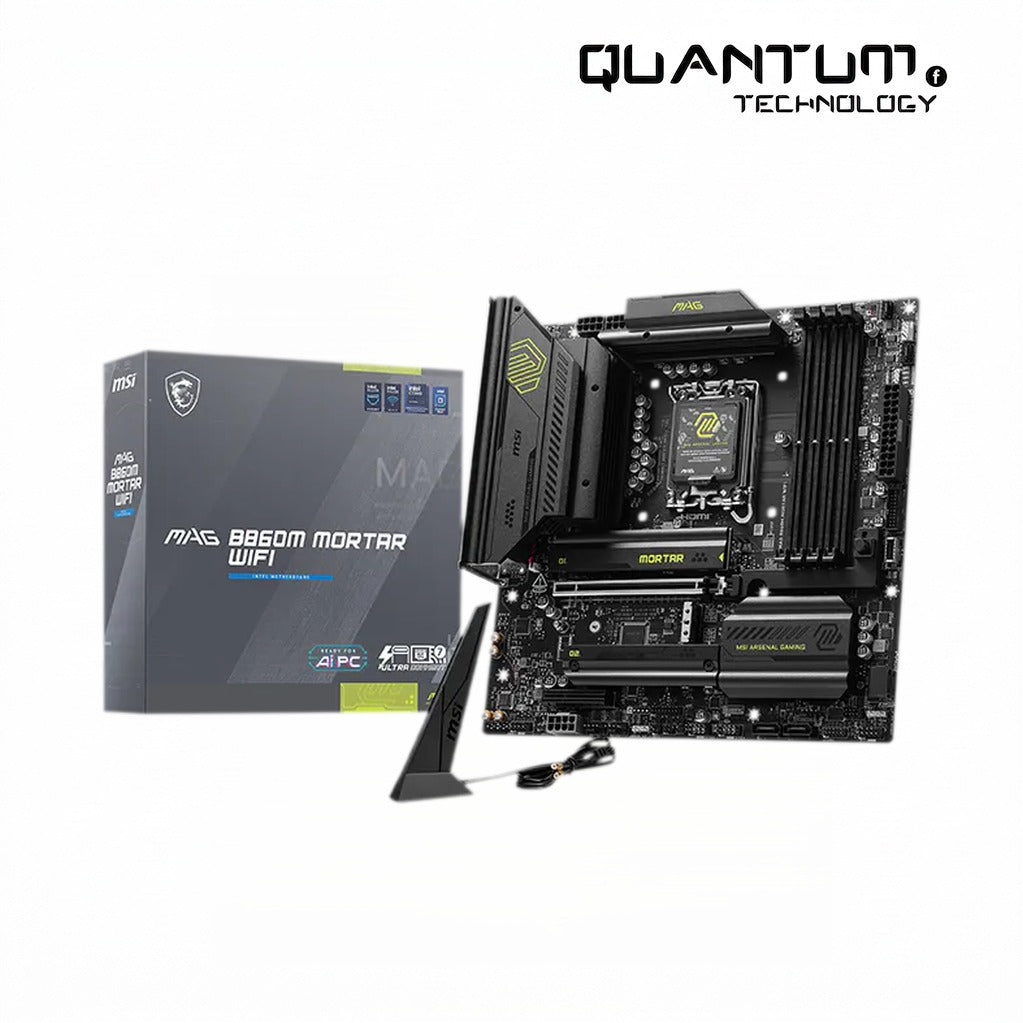

MB MSI MAG B860M MORTAR WIFI

Balanced mATX gaming and productivity board with DDR5 and Wi‑Fi 7 The MSI MAG B860M MORTAR WIFI is an mATX Intel B860 motherboard with LGA 1851 socket, DDR5 support up to 256GB and onboard Killer Wi‑Fi 7 for high-speed networking.

Key Features:

• CPU compatibility: Supports Intel® Core™ Ultra Processors (Series 2) on LGA1851 for modern platform performance.

• High-speed expansion: PCIe 5.0 x16 slot and a CPU-fed Gen5 M.2 slot enable fast GPUs and next-gen SSDs.

• Advanced networking: Intel® Killer™ E5000 5Gbps LAN plus pre-installed Killer Wi‑Fi 7 module deliver low-latency wired and wireless connectivity.

• Thermal and power design: 12+1+1+1 60A DrMOS Duet Rail power stages and extended Frozr heatsinks keep components stable under load.

• EZ DIY features: EZ PCIe Release, EZ M.2 Shield Frozr II and EZ Antenna simplify installation and maintenance.

• Onboard Thunderbolt: Integrated Thunderbolt 4 Type-C offers 40Gbps connectivity and daisy-chain support for peripherals.

Technical Specifications:

• Chipset: Intel B860

• Socket: LGA 1851

• Form Factor: mATX / 243.84mm x 243.84mm (9.60" x 9.60")

• Memory Support: 4 x DDR5 UDIMM

• Max Memory: 256GB

• M.2 Slots: 3 x M.2 (M.2_1: CPU PCIe 5.0 x4; M.2_2: Chipset PCIe 4.0 x4; M.2_3: Chipset PCIe 4.0 x4)

• PCIe Slots: 1 x PCI-E x16 (PCI_E1 Gen5 from CPU), 1 x PCI-E x4 (PCI_E2 Gen4 from Chipset)

• Networking: Intel® Killer™ E5000 5Gbps LAN

• Rear I/O: 3 x USB 10Gbps Type-A (Rear), 1 x USB 10Gbps Type-C (Rear), additional USB 10Gbps Type-C (Front), multiple USB 5Gbps and USB 2.0 ports

• Wireless / Bluetooth: Intel® Killer™ BE1750x Wi‑Fi 7 (pre-installed M.2 Key-E module); Bluetooth 5.4

• Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, S/PDIF out
