MB MSI B860M GAMING PLUS WIFI

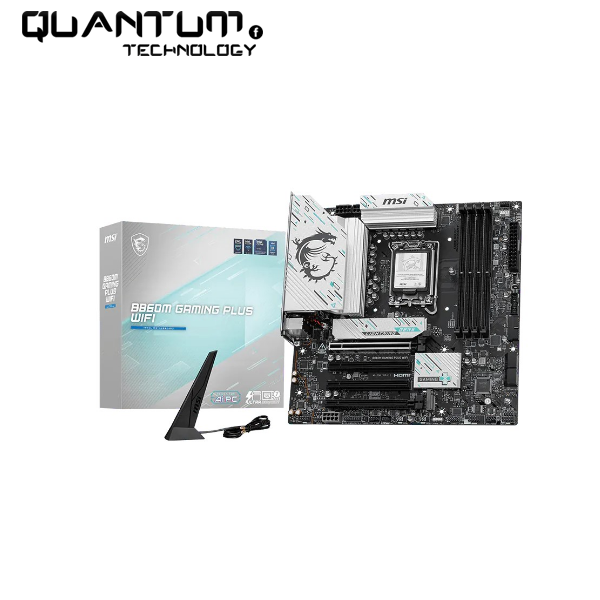

MSI B860M GAMING PLUS WIFI Motherboard

• Intel LGA 1851 Socket: Designed for the latest Intel Core Ultra Processors (Series 2), supporting the Arrow Lake architecture for cutting-edge performance.

• 12+1+1+1 Duet Rail Power System: Features a robust power delivery design with high-quality 7W/mK MOSFET thermal pads and an extended heatsink to ensure stability for high-performance chips.

• Next-Gen DDR5 Support: Equipped with four DIMM slots supporting up to 256GB of memory, with extreme overclocking speeds reaching 8800+ MT/s (OC).

• PCIe 5.0 x16 Slot: Features a primary "Lightning Gen 5" slot for maximum bandwidth with future-gen graphics cards, reinforced with Steel Armor to prevent GPU sag.

• Triple M.2 Storage: Includes three M.2 slots, featuring one PCIe 5.0 x4 slot for enthusiast-grade SSDs and two PCIe 4.0 slots for high-speed storage expansion.

• Integrated Wi-Fi 7: Offers the latest Wi-Fi 7 (802.11be) support for ultra-fast wireless speeds and lower latency, alongside a premium 5Gbps LAN port.

• Thunderbolt 4 & USB4 Ready: Includes a rear Thunderbolt 4 port (40Gbps) with DisplayPort 2.1 support and is "Thunderbolt 5 Ready" via an internal card connector.

• EZ DIY Features: Includes the EZ M.2 Shield Frozr II (tool-less heatsink), EZ PCIe Clip II, and EZ Debug LEDs to simplify the building and troubleshooting process.

• Micro-ATX Precision: A compact mATX form factor that fits perfectly into mid-tower and small-form-factor cases without sacrificing premium connectivity.

• Advanced Audio & Visuals: Features the Realtek ALC897 7.1-channel HD audio and supports triple display output via HDMI 2.1, DisplayPort 1.4, and USB-C.

Perfect for: Builders moving to the Intel Core Ultra platform who want a compact, future-proof motherboard with flagship-tier networking (Wi-Fi 7/5G LAN) and PCIe 5.0 storage support.
