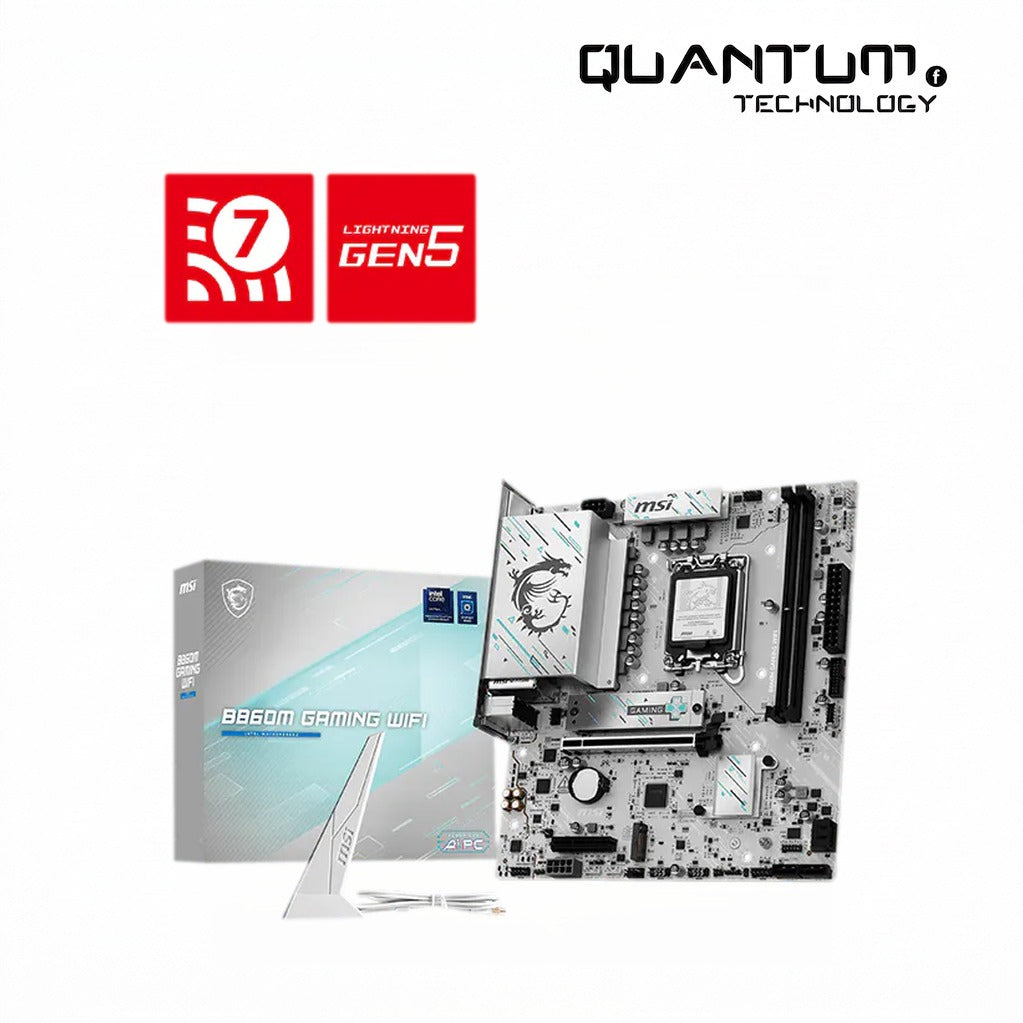

MB MSI B860M GAMING PLUS WI-FI

Compact gaming motherboard with Thunderbolt 4 and Wi‑Fi 7 The MSI B860M GAMING PLUS WIFI is an Intel B860 chipset micro-ATX motherboard that supports LGA 1851 processors, DDR5 memory up to 8800+ MT/s (OC), and includes Thunderbolt 4 Type-C connectivity.

Key Features:

• Thunderbolt 4 Type-C: Deliver very high-speed external connectivity up to 40Gbps and 15W charging support for compatible devices.

• Full-speed Wi‑Fi 7 & 5Gbps LAN: Built-in Intel Killer BE1750x Wi‑Fi 7 and Intel Killer E5000B 5Gbps LAN provide low-latency wireless and wired networking for gaming and streaming.

• PCIe Gen5 and triple M.2: A PCIe 5.0 x16 slot plus three M.2 slots (Gen5/Gen4/Gen4) let you install the latest GPUs and high-speed NVMe storage.

• Robust power delivery: 12+1+1+1 Duet Rail Power System with an extended VRM heatsink supports stable CPU performance under load.

• Easy installation: Tool-less EZ M.2 Shield Frozr II, EZ PCIe Clip II and a pre-installed I/O shield simplify building and maintenance.

Technical Specifications:

• Chipset: Intel® B860 Chipset

• Socket: LGA 1851

• Form Factor: Micro-ATX

• Memory Support: 4 DIMMs, Dual Channel DDR5 - 8800+ MT/s (OC)

• M.2 Slots: 1 x M.2 Gen5 x4 128Gbps, 1 x M.2 Gen4 x4 64Gbps, 1 x M.2 Gen4 x2 32Gbps

• PCIe Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots

• Networking: Intel® Killer™ E5000B 5Gbps LAN; Intel® Killer™ BE1750x Wi‑Fi 7, Bluetooth 5.4

• Rear I/O: Thunderbolt™ 4 (Type-C up to 40Gbps), 2 x USB 10Gbps (1 Type-A + 1 Type-C), 7 x USB 5Gbps (6 Type-A + 1 Type-C), 6 x USB 2.0, HDMI™ 2.1, DisplayPort 1.4

• CPU Support: Supports Intel® Core™ Ultra Processors (Series 2)

• Audio: 8-Channel (7.1) HD Audio with Audio Boost
