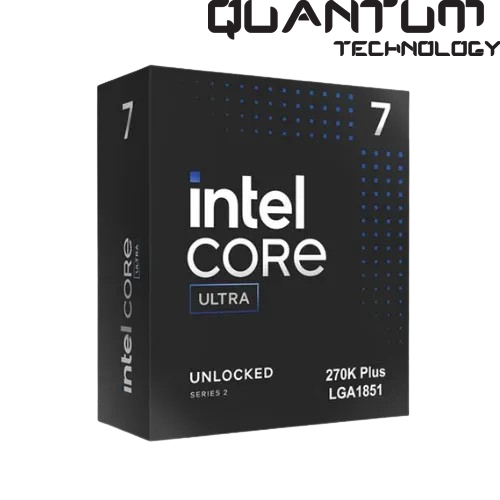

Intel Core Ultra 7 270K Plus box 24-Core Desktop Processor

Intel® Core™ Ultra 7 270K Plus Desktop Processor

High-performance 24-core desktop processor built on the Arrow Lake Refresh (Series 2) architecture, delivering exceptional gaming, content creation, AI acceleration, and multitasking performance with 8 Performance-cores, 16 Efficient-cores, and boost speeds up to 5.5 GHz. (Intel)

Processor Family:
Intel® Core™ Ultra Processors (Series 2)

Processor Number:
Core™ Ultra 7 270K Plus

Codename:
Arrow Lake Refresh

Socket:
LGA1851

Lithography:
TSMC N3B

CPU Cores:

• 8 Performance Cores (P-Cores)

• 16 Efficient Cores (E-Cores)

Total Cores:
24

Total Threads:
24

Max Turbo Frequency:
Up to 5.5 GHz

Intel Turbo Boost Max Technology 3.0:
Up to 5.5 GHz

Performance-Core Max Turbo:
5.4 GHz

Efficient-Core Max Turbo:
4.7 GHz

Performance-Core Base Frequency:
3.7 GHz

Efficient-Core Base Frequency:
3.2 GHz

Intel Smart Cache:
36MB

Total L2 Cache:
40MB

Processor Base Power:
125W

Maximum Turbo Power:
250W

Memory Support:

• Up to 256GB

• DDR5 Up to 7200 MT/s

• Dual-Channel Memory

• ECC Memory Support

Integrated Graphics:
Intel® Graphics

Graphics Specifications:

• 4 Xe-Cores

• 300 MHz Base Frequency

• Up to 2.0 GHz Dynamic Frequency

• Supports Up to 4 Displays

• DisplayPort 2.1 UHBR20

• HDMI 2.1 FRL

• eDP 1.4b

Maximum Resolution:

• DisplayPort: 7680 × 4320 @ 60Hz

• HDMI: 7680 × 4320 @ 60Hz

• eDP: 3840 × 2400 @ 120Hz

AI Engine:
Intel® AI Boost (NPU)

AI Performance:

• CPU: 15 TOPS

• GPU: 8 TOPS

• NPU: 13 TOPS

• Platform Total: 36 TOPS

Expansion Support:

• PCI Express 5.0 & 4.0

• Up to 24 PCIe Lanes

Supported PCIe Configurations:

• 1 × x16 + 2 × x4

• 2 × x8 + 2 × x4

• 1 × x8 + 4 × x4

Advanced Technologies:

• Intel Thread Director

• Intel Turbo Boost Technology 2.0

• Intel Turbo Boost Max Technology 3.0

• Intel Speed Shift Technology

• Intel Deep Learning Boost

• Intel Gaussian & Neural Accelerator 3.5

• Intel Quick Sync Video

Media Support:

• AV1 Encode / Decode

• H.264 Encode / Decode

• H.265 (HEVC) Encode / Decode

Instruction Set:
64-bit

Maximum Operating Temperature:
105°C

Features:

• Unlocked Multiplier for Overclocking

• AI-Optimized Architecture

• Integrated Intel Graphics

• DDR5-7200 Support

• PCIe 5.0 Ready

• Enhanced Multi-Core Performance

• Excellent Gaming & Productivity Performance

• Intel AI Boost NPU

• Intel APO Support

Compatibility:

• Intel 800 Series Motherboards

• Windows 11 64-bit

• DDR5 Desktop Platforms

Package Contents:

• Intel Core Ultra 7 270K Plus Processor

• Quick Installation Guide

Perfect for: High-End Gaming PCs, AI Workloads, Content Creation, Streaming, Productivity, Software Development, and Enthusiast Desktop Builds. 🚀⚡🖥️ (Intel)
