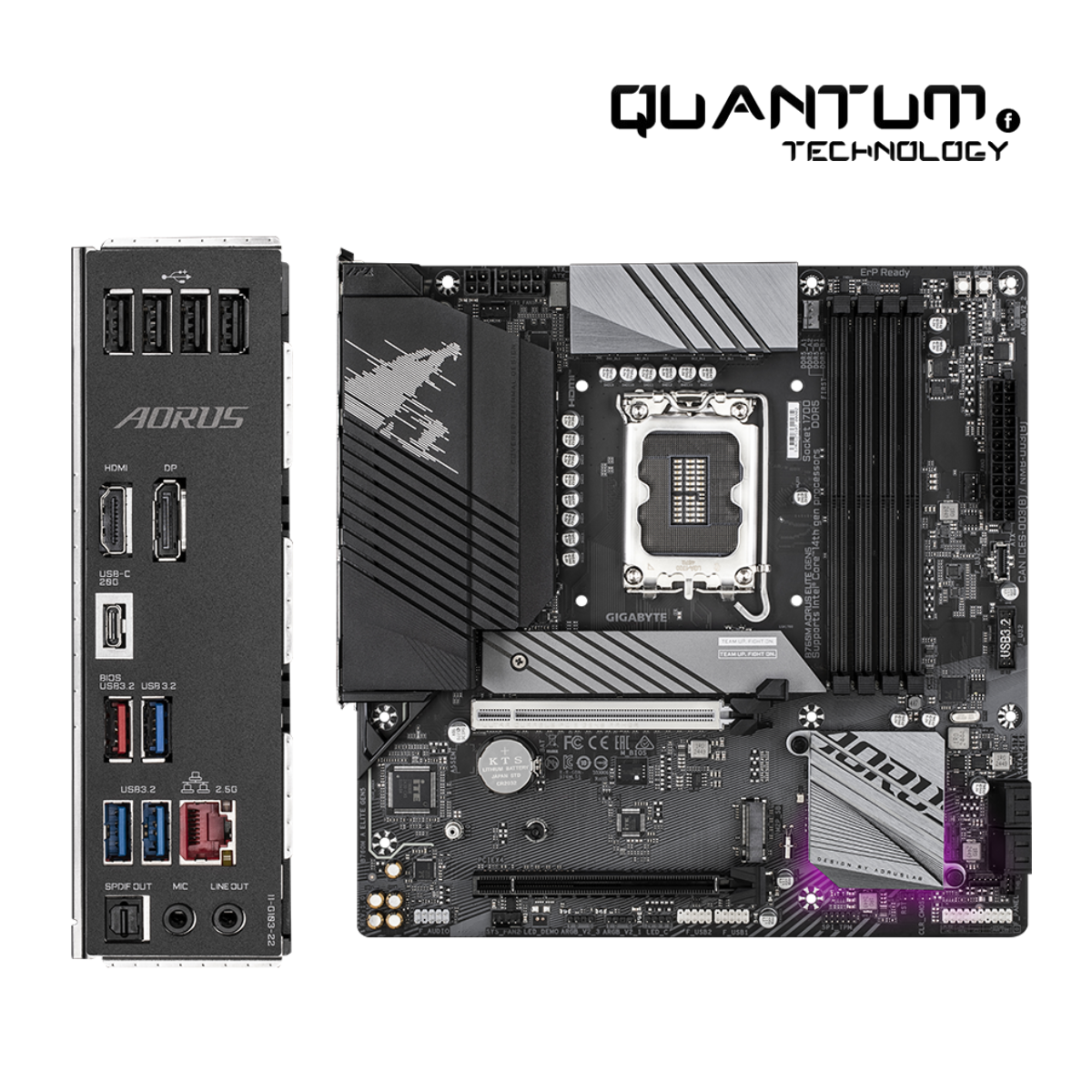

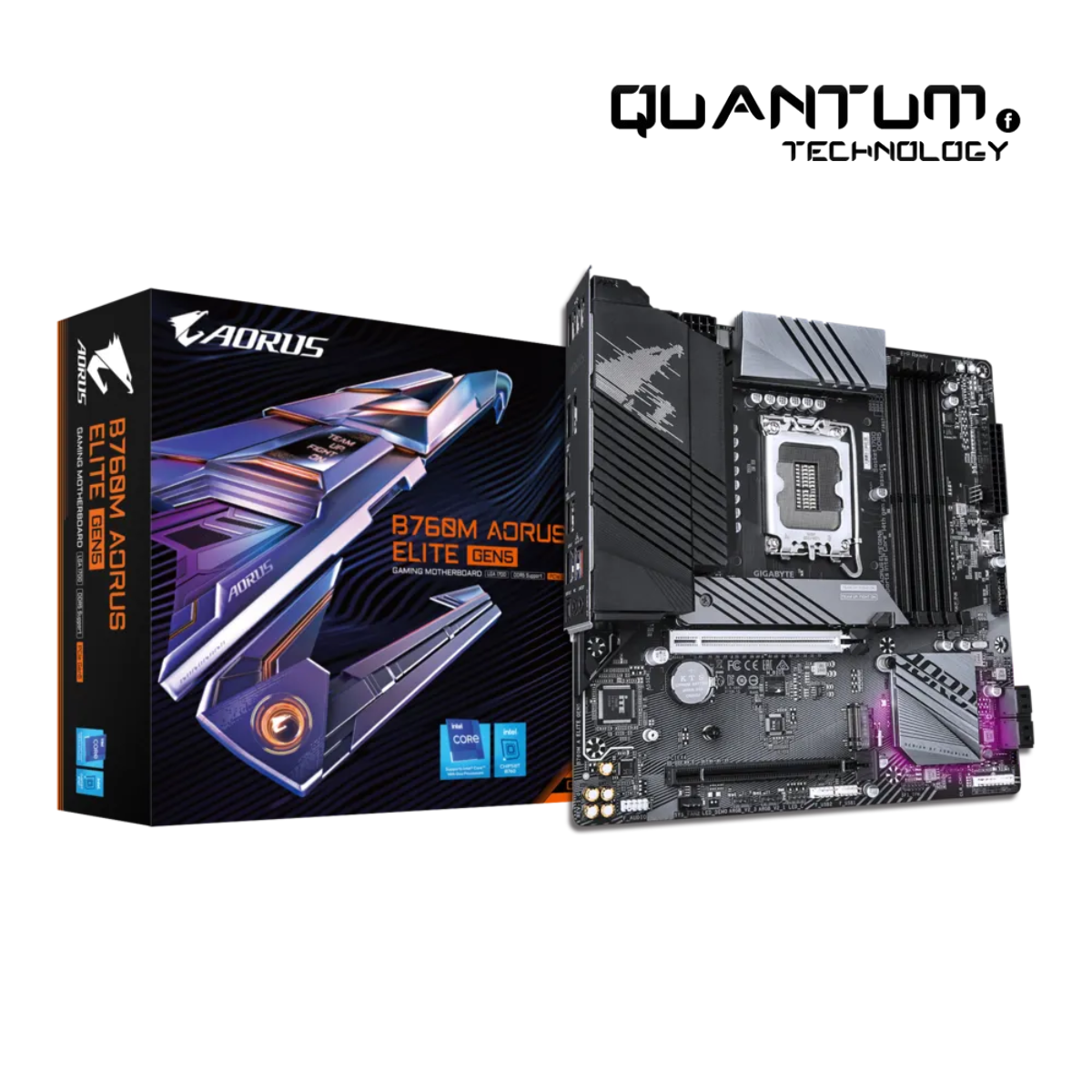

Gigabyte B760M AORUS ELITE GEN5 Motherboard – Intel B760, DDR5, PCIe 5.0

The Gigabyte B760M AORUS ELITE GEN5 is a high-performance micro-ATX motherboard designed for gamers and PC builders who want advanced features, durability, and future-ready technology. Based on the Intel B760 chipset, it supports the latest 12th, 13th, and 14th Gen Intel Core processors with the LGA 1700 socket, making it a strong foundation for modern gaming and productivity systems.

One of its key highlights is the PCIe 5.0 x16 slot, enabling compatibility with next-generation graphics cards and providing maximum bandwidth for future upgrades. For storage, it comes with dual NVMe M.2 slots (Gen5 + Gen4) with dedicated heatsinks, ensuring ultra-fast speeds and consistent thermal performance.

The 12+1+1 VRM power design ensures stable CPU power delivery, while the advanced thermal solution with enlarged heatsinks, M.2 Thermal Guard, and Smart Fan 6 keeps the system running cool under heavy loads.

Connectivity is top-notch with 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C, HDMI, and DisplayPort outputs. Gigabyte’s RGB Fusion lighting control lets you customize your build aesthetics with synchronized effects.

Engineered with Gigabyte’s Ultra Durable design, reinforced PCIe slots, and high-quality components, the B760M AORUS ELITE GEN5 provides gamers with reliability, speed, and flexibility for both current and future PC builds.

⭐ Key Features

• Supports Intel 12th / 13th / 14th Gen CPUs (LGA 1700)

• Intel B760 chipset (micro-ATX form factor)

• PCIe 5.0 x16 slot for next-gen GPUs

• Dual NVMe M.2 slots (Gen5 + Gen4) with heatsinks

• 12+1+1 power phase VRM design for stability

• 2.5Gb Ethernet high-speed networking

• USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort

• RGB Fusion customizable lighting effects

• Ultra Durable design with reinforced slots & components

⚙️ Specifications

• Chipset: Intel B760

• Socket: LGA 1700 (Intel 12th/13th/14th Gen CPUs)

• Form Factor: Micro-ATX

• Memory: 4 × DDR5 DIMM slots, up to 192GB, 7600MHz (OC)

• Expansion: 1 × PCIe 5.0 x16, 1 × PCIe 3.0 x16 (x4), 1 × PCIe 3.0 x1

• Storage: 2 × M.2 (1 × PCIe Gen5 x4, 1 × PCIe Gen4 x4), 4 × SATA 6Gb/s

• Networking: Intel 2.5Gb LAN

• USB Ports: USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0

• Audio: Realtek 7.1 Channel HD Audio

• Power Design: 12+1+1 VRM phases

• Warranty: 3 Years Limited.
