ASUS TUF GAMING B760-PLUS WIFI MotherBoard

ASUS TUF GAMING B760-PLUS WIFI MotherBoard

LE 9,750.00 EGP
LE 9,750.00 EGP
Sale Sold out
Shipping calculated at checkout.

The ASUS TUF GAMING B760-PLUS WIFI motherboard is engineered to deliver robust performance, comprehensive connectivity, and enhanced durability, making it an excellent choice for gamers and PC enthusiasts.​

🔧 Key Specifications ASUS TUF GAMING B760-PLUS WIFI

  • CPU Support: Intel® 12th, 13th, and 14th Gen Core™, Pentium® Gold, and Celeron® processors with LGA1700 socket.

  • Chipset: Intel® B760.

  • Memory: 4 x DDR5 DIMM slots, supporting up to 128GB of non-ECC, un-buffered memory.

  • Expansion Slots:

    • 1 x PCIe 5.0 x16 slot for graphics cards.

    • 1 x PCIe 3.0 x16 slot (supports x4 mode).

    • 2 x PCIe 3.0 x1 slots.

  • Storage Options:

    • 3 x M.2 slots (PCIe 4.0 x4).

    • 4 x SATA 6Gb/s ports.

  • Networking:

    • Realtek 2.5Gb Ethernet.

    • Wi-Fi 6 (802.11ax) with Bluetooth® v5.2.

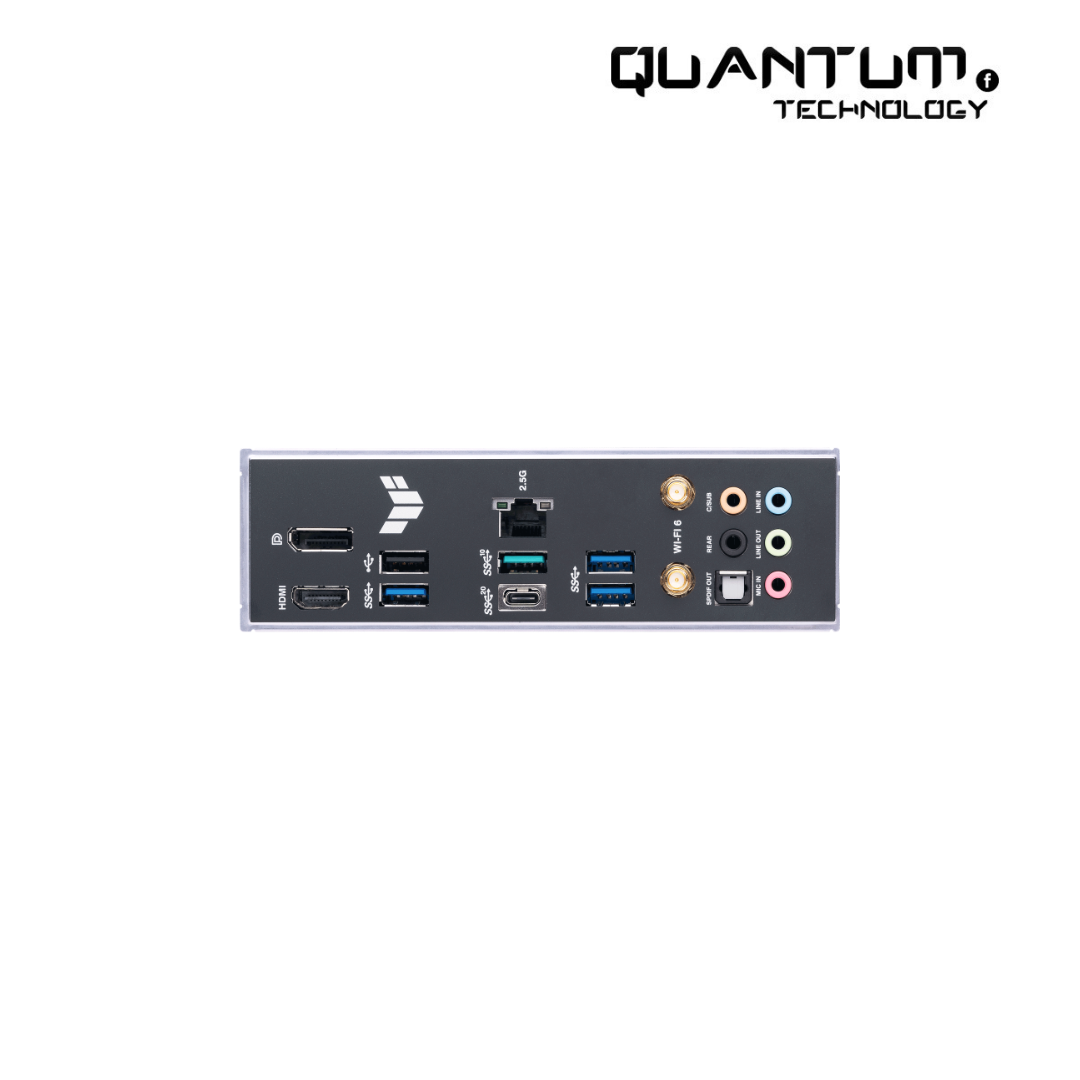

  • USB Ports:

    • Rear:

      • 1 x USB 3.2 Gen 2x2 Type-C®.

      • 1 x USB 3.2 Gen 2 Type-A.

      • 3 x USB 3.2 Gen 1 Type-A.

      • 1 x USB 2.0 Type-A.

    • Front:

      • 1 x USB 3.2 Gen 2 Type-C®.

      • 1 x USB 3.2 Gen 1 header (supports 2 ports).

      • 2 x USB 2.0 headers (support 4 ports).

  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC with premium audio capacitors and optical S/PDIF out port.

  • Form Factor: ATX.​

🛠️ Durability & Cooling ASUS TUF GAMING B760-PLUS WIFI

  • Power Design: 12+1 DrMOS power stages with enlarged VRM heatsinks ensure stable power delivery.

  • Cooling: Three M.2 slots and the PCH are equipped with dedicated heatsinks to maintain optimal operating temperatures.

  • Fan Controls: Comprehensive fan controls can be managed via Fan Xpert 4 utility or UEFI BIOS, allowing for precise thermal management.​

🌐 Connectivity & Features ASUS TUF GAMING B760-PLUS WIFI

  • PCIe 5.0 Support: The primary PCIe 5.0 x16 slot offers increased bandwidth for next-generation GPUs.

  • USB Connectivity: Includes USB 3.2 Gen 2x2 Type-C® and front-panel USB 3.2 Gen 2 Type-C® header for high-speed data transfer.

  • Networking: Equipped with Realtek 2.5Gb Ethernet and Wi-Fi 6 for fast and reliable network connections.

  • AI Noise Cancelation: Two-Way AI Noise Cancelation technology ensures clear communication during gaming or video calls.​
