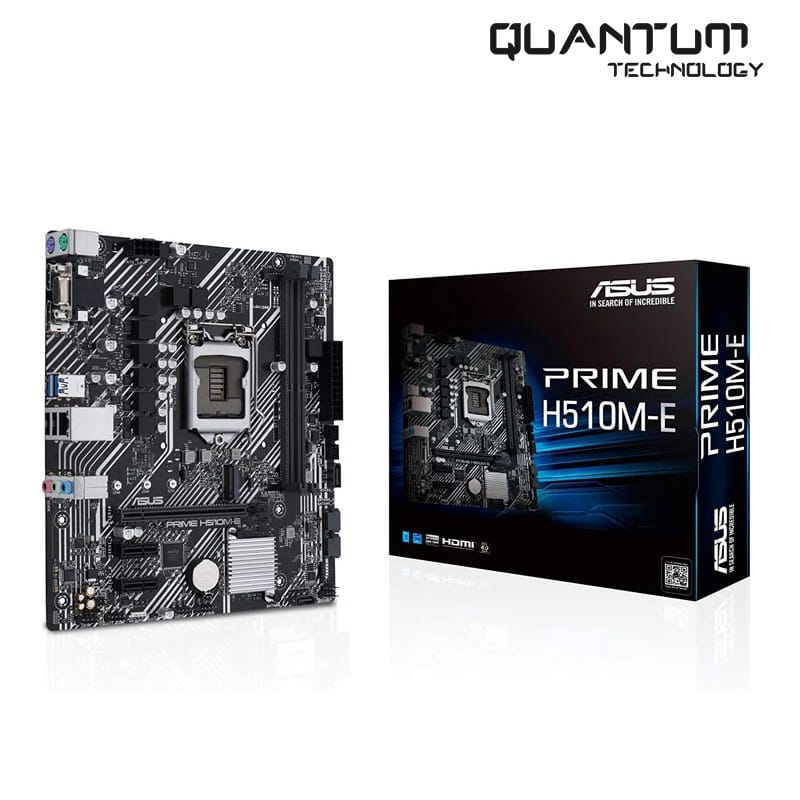

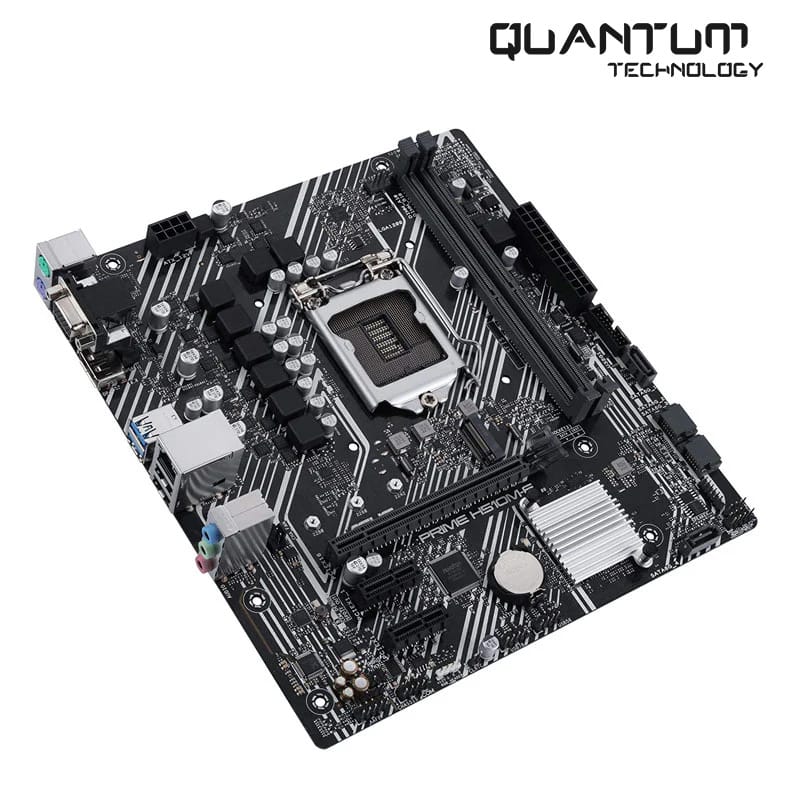

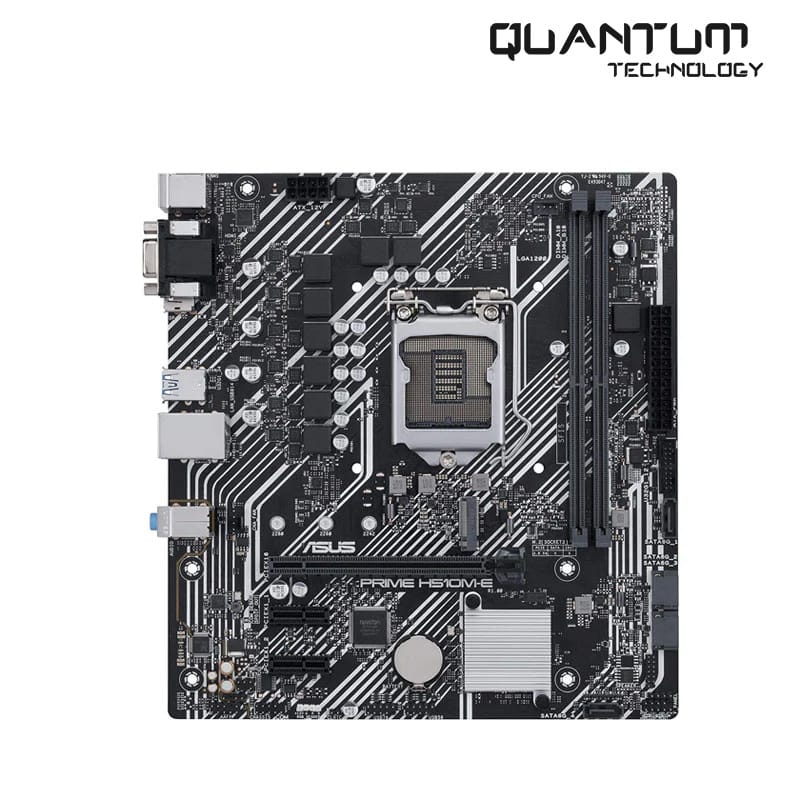

ASUS PRIME H510M-E Intel H510 LGA 1200 MOTHERBOARD

The ASUS PRIME H510M-E is a micro-ATX motherboard designed for Intel's LGA 1200 socket, supporting 10th and 11th Gen Intel Core processors. Below are some key features and specifications:

• Dual M.2 Slots: One M.2 slot supports data transfer speeds up to 32Gbps via PCIe 3.0 x4 bandwidth, perfect for NVMe SSDs. This ensures rapid data access and reduces load times.
• Optimized Memory Layout: ASUS OptiMem II technology improves memory trace layout by reducing crosstalk and signal noise, allowing for higher memory frequencies and better stability.

• Intel^® LGA 1200 socket: Ready for 11^th and 10^th Gen Intel^® Processors
• Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel^® 1 Gb Ethernet and USB 3.2 Gen 1 Type-A
• Comprehensive cooling: PCH heatsink and Fan Xpert
• 5X Protection III: Multiple hardware safeguards for all-round protection

Key Features

• CPU Support: Supports 10th Gen Intel Core, Pentium Gold, and Celeron processors, and 11th Gen Intel Core processors.
• Chipset: Intel H510.
• Memory: 2 x DIMM slots, supporting up to 64GB of DDR4 memory.
• Storage:
  • 1 x M.2 slot (supports NVMe SSDs)
  • 4 x SATA 6Gb/s ports
• Graphics Output:
  • 1 x HDMI 1.4b
  • 1 x D-Sub (VGA)
• Expansion Slots:
  • 1 x PCIe 4.0/3.0 x16 slot (depending on the CPU)
  • 2 x PCIe 3.0 x1 slots
• Audio: Realtek ALC897 7.1-Channel High Definition Audio CODEC.
• Networking: Realtek RTL8111H Gigabit Ethernet.
• USB Ports:
  • Rear I/O: 2 x USB 3.2 Gen 1, 4 x USB 2.0
  • Front: Supports additional USB 3.2 Gen 1 and USB 2.0 ports via headers.
• Form Factor: Micro-ATX (24.4 cm x 22.1 cm).
