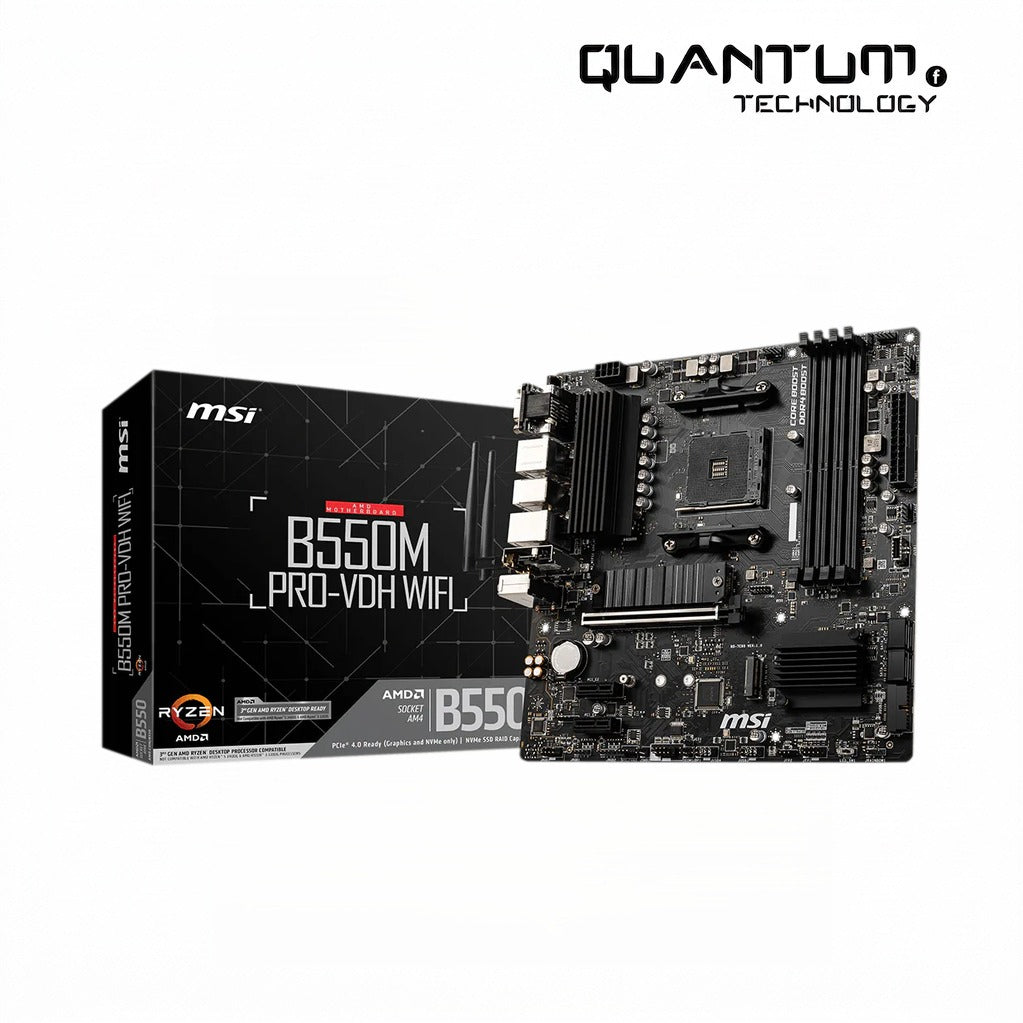

MB MSI B550M PRO VDH WI-FI

Compact AMD B550 motherboard with onboard Wi‑Fi and Bluetooth The MSI B550M PRO-VDH WIFI is an MSI Micro-ATX motherboard with the AMD B550 chipset, AMD Socket AM4, DDR4 memory support up to 4400+ MHz (OC), and integrated Intel Wireless-AC 3168 Wi‑Fi and Bluetooth 4.2 for flexible builds.

Key Features:

• Core Boost: Provides a premium power design that helps maintain stable power delivery for multi-core AMD CPUs under load.

• Lightning Gen4 Solution: Enables PCIe 4.0 support for the graphics slot and the primary M.2 for higher bandwidth storage and GPU performance.

• M.2 Shield FROZR: Built-in thermal protection for M.2 drives to help reduce throttling and keep NVMe performance consistent.

• 2oz Thickened Copper PCB: Improves heat dissipation and board reliability for sustained system stability.

• DDR4 Boost: Optimized memory traces to enhance memory stability and performance at overclocked speeds.

• Audio Boost: Enhanced onboard audio circuitry for clearer 7.1-channel sound output.

Technical Specifications:

• Chipset: AMD B550

• Socket: AMD Socket AM4

• Form Factor: Micro-ATX (24.4 cm x 24.4 cm)

• Memory Support: DDR4 up to 4400+ MHz (OC) — JEDEC and A-XMP supported speeds as published

• Max Memory: 128 GB

• M.2 Slots: 2 (M.2_1: PCIe 4.0 x4, M.2_2: PCIe 3.0 x4) — supports 2242/2260/2280

• PCIe Slots: 1x PCIe 4.0/3.0 x16

• Networking: Realtek RTL8111HN Gigabit LAN; Intel Wireless-AC 3168 (Wi‑Fi 802.11a/b/g/n/ac up to 433 Mbps), Bluetooth 4.2

• SATA III: 4 x SATA 6Gb/s

• Audio: Realtek ALC892/ALC897 Codec — 7.1-channel HD Audio (Audio Boost)
