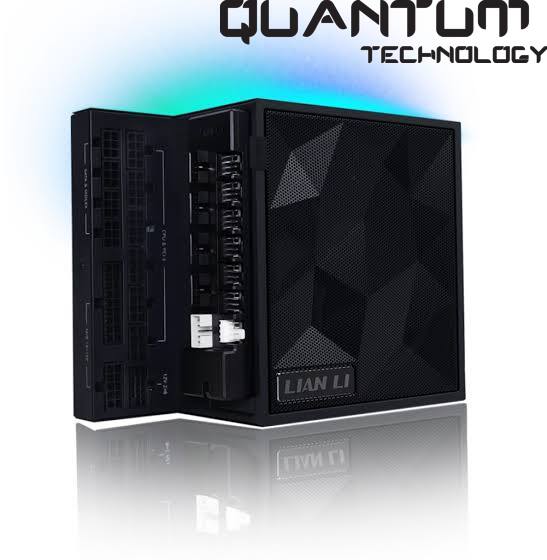

Lian Li Edge Gold EG1200G 1200W 80 Plus Gold ATX 3.1 Full Modular Power Supply

LIAN LI EDGE GOLD Fully Modular ATX 3.1 Power Supply

High-performance fully modular ATX 3.1 power supply designed for high-end gaming PCs and workstation builds, featuring an innovative L-shaped connector layout, 80 PLUS Gold efficiency, PCIe 5.1 / 12V-2×6 support, premium braided cables, and a detachable USB/Fan hub for superior cable management and compatibility with dual-chamber cases.

Available Wattages:

• 750W

• 850W

• 1000W

• 1200W

Efficiency Certification:
80 PLUS Gold

Additional Certifications:

• Cybenetics Gold

• PPLP Gold

Form Factor:
ATX 3.1

PCIe Standard:
PCIe 5.1 Ready

Design:
Fully Modular

Color Options:

• Black

• White

Dimensions:
182 × 86 × 150 mm

Input Voltage:
100–240V AC

Input Frequency:
50–60Hz

Power Factor Correction:
Active PFC

Cooling Fan:
120mm Fluid Dynamic Bearing (FDB) Fan

Cooling Features:

• Zero RPM Mode at Low Loads

• Temperature-Controlled Fan

• Removable Magnetic Dust Filter

GPU Support:

• Native 12V-2×6 Connector

• Supports NVIDIA GeForce RTX 40 & RTX 50 Series

• PCIe 5.1 Certified

Cable Features:

• Premium Braided Modular Cables

• Pre-Installed Cable Combs

• Longer Cable Lengths

• Optimized for Dual-Chamber Cases

Integrated Hub:

• Detachable USB/Fan Hub

• 4 × Internal USB 2.0 Headers

• 6 × PWM Fan Headers

• Magnetic Attachment

Protection Features:

• Over Current Protection (OCP)

• Over Voltage Protection (OVP)

• Under Voltage Protection (UVP)

• Over Power Protection (OPP)

• Over Temperature Protection (OTP)

• Short Circuit Protection (SCP)

• Surge & Inrush Protection (SIP/NLP)

Capacitors:
Premium Industrial-Grade EPCOS Capacitors

Features:

• Unique L-Shaped Side Connector Design

• Simplified Cable Routing

• Excellent Voltage Regulation

• Low Ripple Output

• Optimized for High-End Gaming Systems

• Compatible with LIAN LI EDGE HUB

Compatibility:

• Intel ATX 3.1 Platforms

• AMD AM5 Platforms

• RTX 40 & RTX 50 Series GPUs

• High-End Gaming PCs

• Workstations

• Dual-Chamber PC Cases

Warranty:

• 10 Years (Power Supply)

• 2 Years (USB/Fan Hub)

Perfect for: High-End Gaming PCs, RTX 50 Series Builds, AI Workstations, Content Creation, Overclocking, and Premium Dual-Chamber PC Builds. 🚀⚡🖥️
