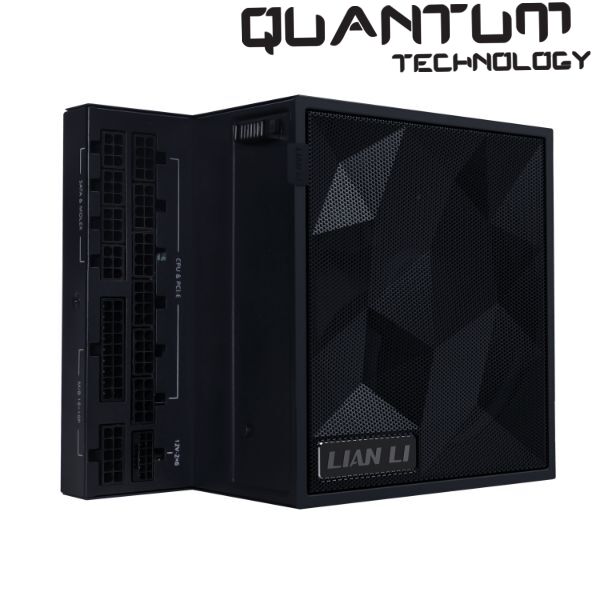

Lian Li Edge Gold EG0850G 850W 80 Plus Gold ATX 3.1 Full Modular Power Supply

LIAN LI EDGE GOLD Fully Modular ATX 3.1 Power Supply

High-performance fully modular ATX 3.1 power supply designed for high-end gaming PCs and workstation builds, featuring an innovative L-shaped connector layout, 80 PLUS Gold efficiency, PCIe 5.1 / 12V-2×6 support, premium braided cables, and a detachable USB/PWM hub for superior cable management. (Lian Li)

Available Wattages:

• 750W

• 850W

• 1000W

• 1200W

Efficiency Certification:
80 PLUS Gold

Additional Certifications:

• Cybenetics Gold (750W / 850W)

• Cybenetics Platinum (1000W / 1200W)

• PPLP Gold

Form Factor:
ATX 3.1

PCIe Standard:
PCIe 5.1 Ready

Power Supply Design:
Fully Modular

Dimensions:
182 × 150 × 86 mm

Color Options:

• Black

• White

Input Voltage:
100–240V AC

Input Frequency:
50–60Hz

Power Factor Correction:
Active PFC

Cooling Fan:
120mm Fluid Dynamic Bearing (FDB) PWM Fan

Cooling Features:

• Zero RPM Fan Mode

• Temperature-Controlled Fan

• Removable Magnetic Dust Filter

• Open Mesh Ventilation Design

GPU Support:

• Native 12V-2×6 Connector

• PCIe 5.1 Certified

• Supports NVIDIA GeForce RTX 40 & RTX 50 Series GPUs

Cable Features:

• Fully Braided Modular Cables

• Pre-installed Cable Combs

• Extended Cable Lengths

• Optimized for Dual-Chamber Cases

Integrated EDGE HUB (1000W & 1200W Models):

• 4 × Internal USB 2.0 Headers

• 6 × PWM Fan Headers

• Detachable Magnetic Design

• Can Operate Independently

Protection Features:

• Over Current Protection (OCP)

• Over Voltage Protection (OVP)

• Under Voltage Protection (UVP)

• Over Power Protection (OPP)

• Over Temperature Protection (OTP)

• Short Circuit Protection (SCP)

• Surge Protection (SIP)

• No Load Operation (NLO)

• Inrush Current Limiter

Capacitors:
Industrial-Grade EPCOS German Capacitors (or Equivalent Japanese Capacitors)

Features:

• Innovative L-Shaped Connector Design

• Optimized for Dual-Chamber & Standard Tower Cases

• Improved Cable Management

• Stable 12V-2×6 Connector with Alloy Copper Terminals

• Low Ripple & Excellent Voltage Regulation

• Premium Braided Cable Set

• Magnetic Dust Filter

• Detachable USB & PWM Hub

• ATX 3.1 & PCIe 5.1 Compliant

Compatibility:

• Intel ATX 3.1 Platforms

• AMD AM5 Platforms

• NVIDIA RTX 40 & RTX 50 Series

• High-End Gaming PCs

• Workstations

Warranty:

• 10 Years (Power Supply)

• 2 Years (EDGE HUB) (Lian Li)

Perfect for: High-End Gaming PCs, RTX 50 Series Builds, AI Workstations, Content Creation, Overclocking, and Premium Dual-Chamber PC Builds. 🚀⚡🖥️
