Lian Li Edge FAN PWM Hub Power Supply Hub

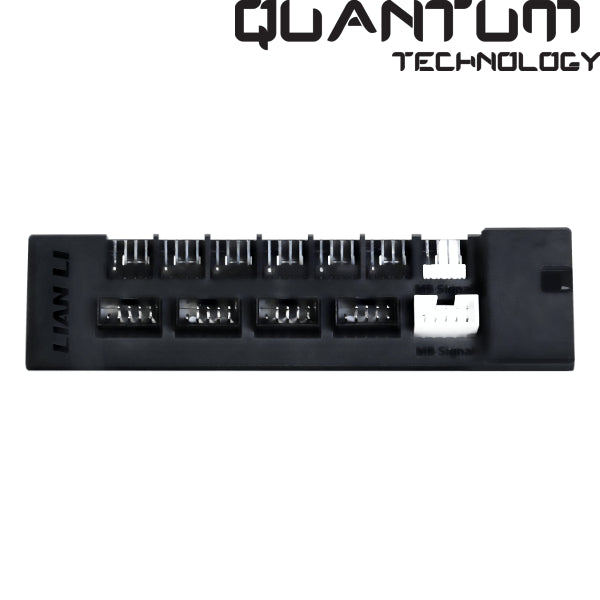

LIAN LI EDGE HUB (EG-HUB01)

Modular USB & PWM Fan Hub designed to expand internal connectivity by adding multiple PWM fan headers and USB 2.0 headers, making it ideal for RGB controllers, fan controllers, and multi-fan PC builds. It features a magnetic design for easy installation and can be powered directly by compatible LIAN LI EDGE PSUs or via a standard PCIe 8-pin power connector. (lian-li.com)

Product Type:
USB & PWM Fan Hub

Model:
EG-HUB01B (Black) / EG-HUB01W (White)

Dimensions:
132 × 35 × 17 mm

Power Input:

• 12V DC (Fan Power)

• 5V DC (USB Power)

Power Source:

• LIAN LI EDGE Gold PSU Connector

• PCIe 8-Pin Power Connector (Standalone Operation)

Fan Connectivity:

• 6 × 4-Pin PWM Fan Headers

• Up to 2A per Fan Header (24W Max Each)

USB Connectivity:

• 4 × Internal USB Headers

• Up to 500mA per Port

• 2.5A Total USB Output

• Supports up to 7 USB Devices using Splitter Cables

Motherboard Connection:

• USB 2.0 Internal Header

• USB Type-A to USB Internal Header Option

Features:

• Magnetic Mounting Design

• Modular External Hub

• Independent Power Supply

• Supports Multiple RGB/Fan Controllers

• PWM Fan Speed Control

• Easy Cable Management

Compatibility:

• LIAN LI EDGE Gold Power Supplies

• Standard ATX Power Supplies (via PCIe 8-Pin)

• Compatible with Most ATX, Micro-ATX, and Mini-ITX Systems

Color Options:

• Black

• White

Warranty:
2 Years

Package Contents:

• LIAN LI EDGE HUB

• PCIe 8-Pin Power Cable

• USB Connection Cable

• Installation Accessories

• User Manual

Perfect for: Multi-Fan Gaming PCs, RGB Builds, Custom Water-Cooled Systems, High-End Workstations, and Clean Cable Management Setups. 🚀🖥️⚡ (lian-li.com)
