Kingston 8GB DDR5 5600MHz CL46 Desktop Memory

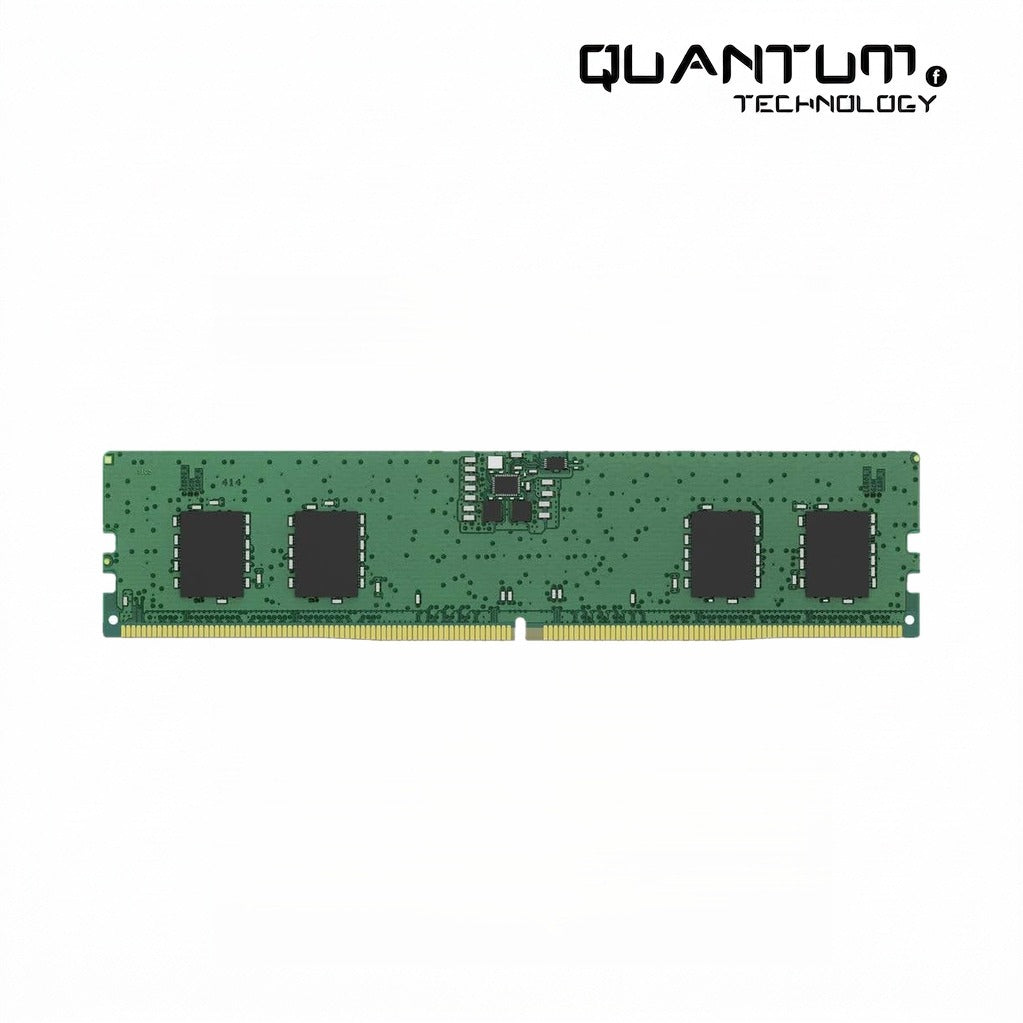

Compact Kingston ValueRAM DDR5-5600 CL46 desktop memory module The Kingston ValueRAM 8GB DDR5-5600 CL46 DIMM is an 8GB desktop memory module rated for DDR5-5600 (PC5-5600) operation with JEDEC-programmed CL46 (46-45-45) timings and On-Die ECC for improved data integrity.

Key Features:

• JEDEC-standard DDR5-5600: Delivers industry-standard DDR5-5600 performance for compatible desktops and motherboards.

• Factory CL46 timings: Ship with JEDEC-programmed 46-45-45 latency at 1.1V for stable out-of-the-box operation.

• On-Die ECC: Improves data integrity at the DRAM die level without requiring system-level ECC support.

• Single-rank design: Uses a 1Rx16 configuration built from 16Gbit components for predictable compatibility.

• Environmentally compliant: RoHS compliant and halogen-free construction for reduced environmental impact.

Technical Specifications:

• Part Number: KVR56U46BS6-8

• Capacity: 8GB

• Memory Type: DDR5-5600 (PC5-5600)

• Speed: DDR5-5600

• CAS Latency: CL46 (46-45-45)

• Voltage: VDD = 1.1V (VDDQ = 1.1V, VPP = 1.8V)

• Form Factor: 288-pin DIMM (UDIMM)

• Module configuration: 1Rx16 (single-rank)

• SPD / Timing programmed: JEDEC DDR5-5600 timing programmed (46-45-45)
