ASUS PRIME B850M-A WIFI

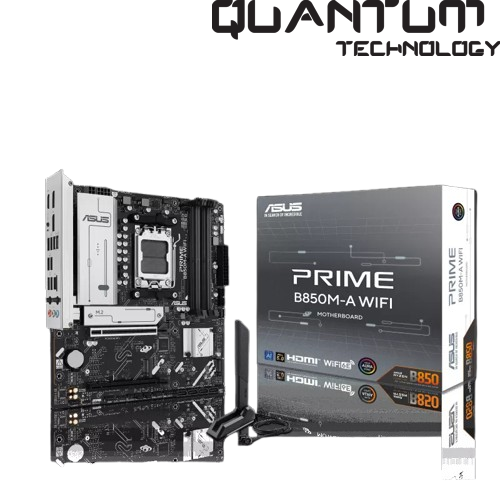

ASUS PRIME B850M-A WIFI Motherboard

Reliable Micro-ATX motherboard built for AMD Ryzen™ 9000, 8000 & 7000 Series processors, featuring DDR5 support, PCIe 5.0, Wi-Fi 6E, 2.5Gb Ethernet, and comprehensive ASUS AI and EZ DIY features for gaming, productivity, and content creation.

Form Factor:
Micro-ATX

Chipset:
AMD B850

CPU Socket:
AM5

Processor Support:

• AMD Ryzen™ 9000 Series

• AMD Ryzen™ 8000 Series

• AMD Ryzen™ 7000 Series

• Supports CPUs up to 170W

Memory Support:

• 4 × DDR5 DIMM Slots

• Up to 256GB

• DDR5 8000+ MT/s (OC)

• Dual Channel

• AMD EXPO™

• ASUS AEMP

• ECC & Non-ECC Unbuffered DIMMs

Power Design:

• 8+2+1 Digital Power Stages

• DIGI+ VRM

• 8-Pin + 4-Pin CPU Power Connectors

• 6-Layer PCB

Expansion Slots:

• 1 × PCIe 5.0 x16

• 1 × PCIe 4.0 x16 (x1 Mode)

Storage:

• 1 × M.2 PCIe 5.0 x4

• 2 × M.2 PCIe 4.0 x4

• 4 × SATA 6Gb/s

• AMD RAIDXpert2 Support

Display Outputs:

• 2 × DisplayPort 1.4

• 1 × HDMI 2.1

Networking:

• Realtek 2.5Gb Ethernet

• ASUS LANGuard

Wireless Connectivity:

• Wi-Fi 6E (802.11ax)

• Bluetooth 5.3

Audio:

• Realtek 7.1 HD Audio Codec

• Premium Audio Capacitors

• Dedicated Audio PCB Layers

• Audio Shielding

Rear I/O:

• 2 × USB 10Gbps Type-A

• 2 × USB 5Gbps Type-A

• 4 × USB 2.0 Type-A

• 2 × DisplayPort

• 1 × HDMI 2.1

• 1 × 2.5Gb LAN

• 3 × Audio Jacks

• 1 × BIOS FlashBack™ Button

• Wi-Fi Antenna Connectors

Internal Connectors:

• 1 × USB 5Gbps Type-C Front Header

• 1 × USB 5Gbps Header

• 2 × USB 2.0 Headers

• 3 × M.2 Slots

• 4 × SATA Ports

• 3 × Addressable Gen 2 RGB Headers

• 1 × CPU Fan Header

• 1 × CPU OPT Header

• 1 × AIO Pump Header

• 3 × Chassis Fan Headers

Cooling Features:

• VRM Heatsinks

• M.2 Heatsink

• Chipset Heatsink

• Fan Xpert 2+ Smart Cooling

ASUS EZ DIY Features:

• BIOS FlashBack™

• Pre-Mounted I/O Shield

• Q-Antenna

• Q-DIMM

• Q-Slot

• Q-LED Core

• CrashFree BIOS 3

• EZ Flash 3

Software:

• Armoury Crate

• Aura Sync

• Aura Creator

• Fan Xpert 2+

• ASUS AI Advisor

• TurboV Core

• ASUS DriverHub

• GlideX

Operating System:
Windows 11 64-bit

Features:

• PCIe 5.0 Graphics Support

• PCIe 5.0 NVMe SSD Support

• DDR5 Memory Overclocking

• Wi-Fi 6E & Bluetooth 5.3

• 2.5Gb Ethernet

• ASUS 5X Protection III

• SafeSlot PCIe

• Aura Sync RGB

• Advanced AI PC Ready

Package Contents:

• ASUS PRIME B850M-A WIFI Motherboard

• ASUS WiFi Q-Antenna

• 2 × SATA 6Gb/s Cables

• M.2 Rubber Package

• 2 × M.2 Screw Packages

• Quick Start Guide

Perfect for: AMD Ryzen 9000 Gaming PCs, DDR5 Workstations, Content Creation, Streaming, Productivity, and Next-Generation AM5 Desktop Builds. 🚀🖥️⚡
